Piston fillers

Dosamatic Plus

Dosamatic Plus volumetric fillers dose accurately and are reliable and easy to use.
Cosmetic
Food
Chemical
Pharmaceutical

Pneumatically operated volumetric dosing machines, of extreme precision, reliable and simple to use, for the packaging of liquid, semi-dense and even very dense products, with and without suspended pieces, in any type of container. The dosing pumps Dosamatic Plus offers:

  • Extreme precision in the repeatability of the dose
  • Versatility thanks to all the parts in contact with the product are made of AISI 316 stainless steel; they are therefore indicated for use in the food sector, for the packaging of sauces, jams, pesto , meat sauce, yoghurt, mayonnaise, ketchup, and in general for pet food in cream or sauce, chemistry, for the packaging of solvents, paints, varnishes, pastes, resins, glues, in the field of cosmetics and herbal medicine for packaging of creams, perfumes, nail polishes and gels, shampoos, scrubs, oils, masks, liquid foundations, mascara, lip gloss and pharmaceuticals for the packaging of creams, syrups, liquid and thick preparations for pharmaceutical and veterinary use.
  • Wide range of controls that allow you to check and intervene on pressure, temperature, dispensing speed and suction speed.
  • Flexibility and easy of use, materials and specific certifications make the Dosamatic Plus range the most suitable and professional solution for any packaging line.

The Dosamatic Plus range can also be customized according to needs with a base to be positioned on a bench or on a trolley with a dosing pump at the bottom or, again, integrated into automated packaging lines. The dosing pistons can also be equipped with resistances to keep the product at a predefined temperature and they can still be combined with simple loading hoppers, heating groups, mixers or pressing systems, to facilitate the aspiration of the product to be dosed. Ultimately, each machine can be built with the most suitable configuration for the specific needs of the user

Dosamatic plus_raccordo_vasetto (1).jpg

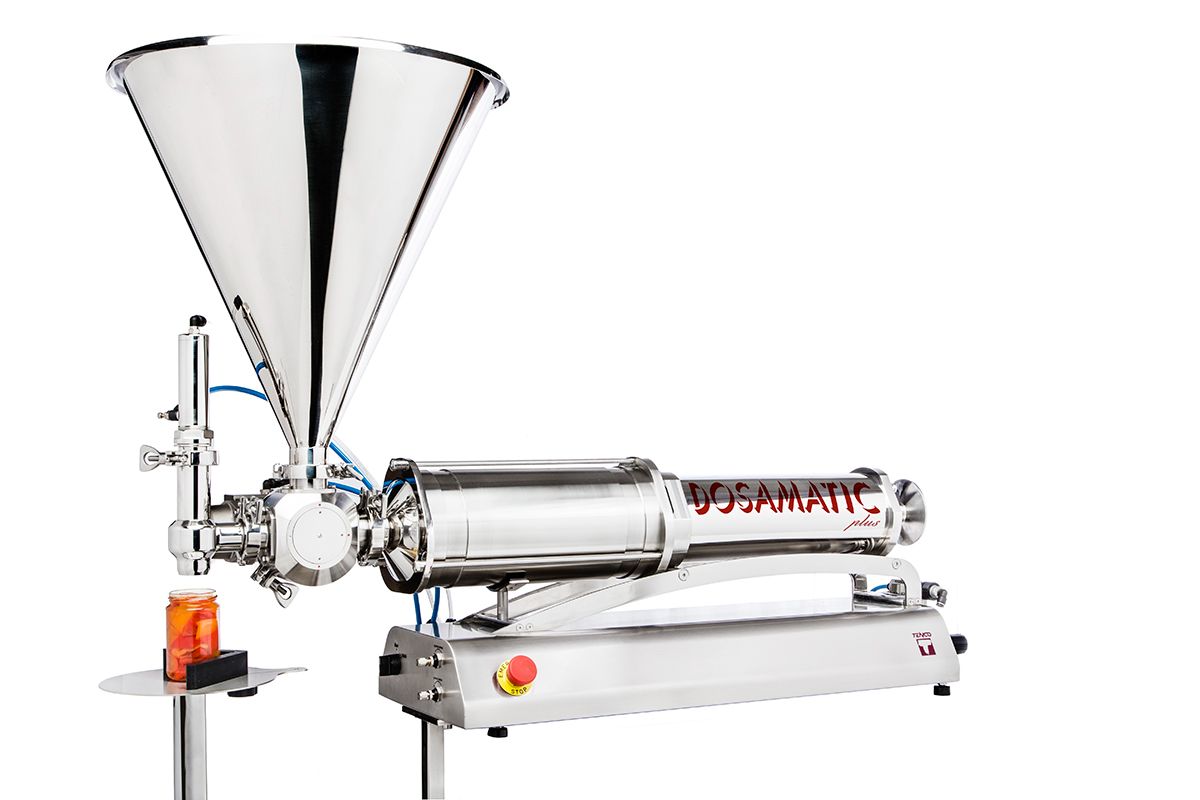

Dosamaticplu_antigoccia_salse (1).jpg
Dosamatic plus_liquidi_bottiglia (1).jpg

Technical specifications

Some technical data to know more about Dosamatic Plus

Specifications

Production
  • about 350/400 jars per hour (variable production depending on the type of product and the speed of the operator)

Max air consumption at 6 bar
  • 157.5 Nl/m

Power supply
  • pneumatics

Dimensions
  • 300 x 1100 x 400 h (bench version)
  • 1100 x 500 x 1300 (wheeled version)

Weight
  • 60 kgs (bench version)
  • 80 kgs (wheeled version)

Operating pressure
  • 4 - 6 bars

Configurations

Available models - dosage range
  • from 100 to 5000 cc

Positioning
  • on bench
  • on trolley

Available gasket kits
  • PTFE food
  • HPU and PTFE food
  • HPU food
  • PTFE
  • PTFE and EPDM

Packaging

Glass
  • bottles
  • jars

Plastic or PET
  • plastic bottles
  • jerry cans
  • plastic jars
  • PET bottles
  • PET trays
  • PET jars
  • flexible bags without spout
  • flexible bags with already welded spout

Metal
  • aluminum trays
  • metal cans
  • tinplate cans

Ceramic
  • bottles
  • jars

Paper and cardboard
  • bottles (frugalbottle)
  • trays
  • jars


Video Gallery

To see Dosamatic Plus in action in various versions and for different applications, you can explore our video library.

FAQs

Do you still have any doubts? Here you will find all the answers you need.

What is the difference between Doselite and Dosamatic Plus?

The Doselite and Doamatic Plus volumetric piston dosers are essentially equivalent, therefore the operation, characteristics and configurations are identical. The difference is in the dosing range, for the Doselite we have various dosing ranges from 1 ml up to 1500 ml (with various dosing pistons), the filling range of the Dosamatic Plus is, instead, from 100 ml up to 5 litres. Naturally, for both models all doses are repeatable.

Are the accessories that I can insert on the Dosamatic Plus the same ones that are mounted on the Doselite?

Yes, all the accessories, valves and kits that are installed on the Doselite can also be mounted on the Dosamatic Plus.

All available configurations

The machine can be configured on demand to meet all needs

Dosamatic plus over the counter

The Dosamatic Plus volumetric piston dosers can be customized according to the needs of use, with a base to be positioned on a bench or on a trolley with wheels, with a dosing pump at the top or bottom or, …

Dosamatic plus on trolley with wheels

The Dosamatic Plus volumetric piston dosers can be customized according to the needs of use, with a base to be positioned on a bench or on a trolley with wheels, with a dosing pump at the top or bottom or, …

Kit and accessories

Pneumatic operated dosing valves

Dosage valves for our piston fillers.
